Fuzz / Octaver / Synth / Phase
Inspired by a vintage mini synth pedal
Unique effect with many interacting sound layers
Harmonises with guitar and bass
True bypass
Slide controls for Vol, Sens, Range, Bright, Fuzz, Rate, Sub
Internal switch changes the sub control (optionally one or two octaves down)
Internal trim pot for phaser feedback
Bypass footswitch
Status LEDs in the slide controls
Metal housing

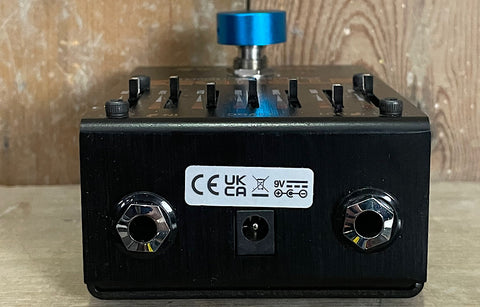

Input: 6.3 mm jack
Output: 6.3 mm jack
Power supply with 9 V battery or via 9 V DC power supply (Dunlop ECB 003 with 2.1 mm x 5.5 mm barrel connector, polarity (-) inside, not included in delivery)
Current consumption: 9 mA
Dimensions (L x W x H): 127 x 83 x 70 mm
Weight: approx. 450 g

Way Huge Atreides
