LUCE – light in Italian – is a studio-quality, transformer-based tube DI (Direct Injection) box; a unity-gain (1:1) tube preamplifier and active summing unit.

Beyond that, LUCE also provides an additional unbalanced output that benefits from the tube circuit, plus an active summing stage that allows two instruments to be connected at once.
All in a compact, pedalboard-friendly format.

Inside the LUCE you’ll find one high-quality, low-noise ECC88/6922 tube and one OEP/Carnhill audio transformer, just like those found in legendary British consoles.

studio-quality, transformer-based tube DI
unity-gain preamplifier and active summing unit
two instruments can be connected at once
PAD switch to attenuate the input signal by -10 dBm
ECC88/6922 tube and OEP/Carnhill audio transformer inside
input impedance: 4.7 MOhm
output impedance: 600 Ohm
noise: -122dBV

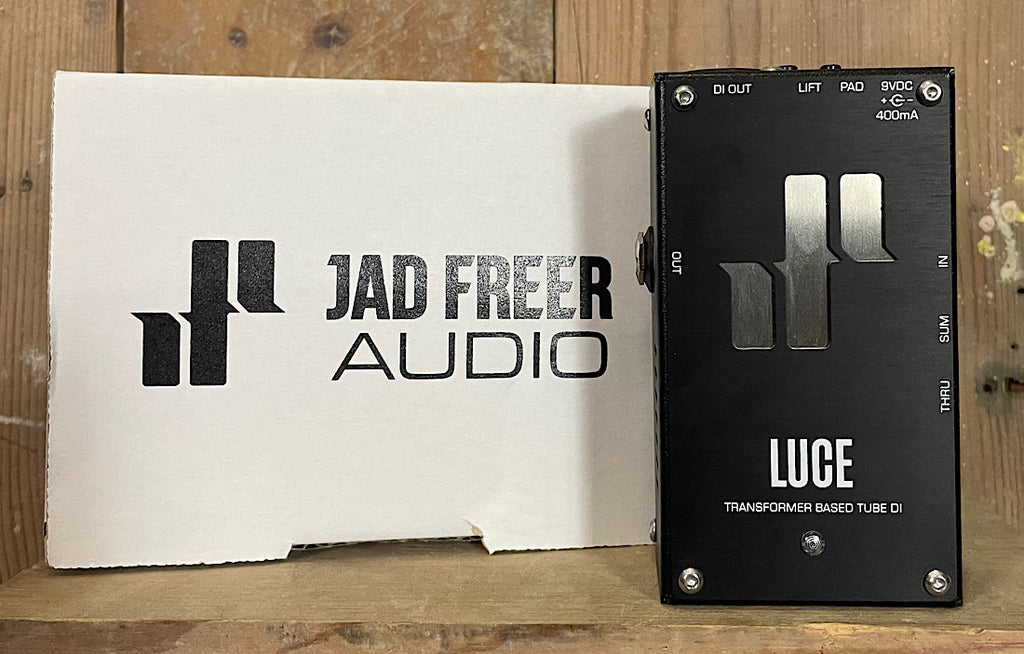

Jad Freer Audio Luce DI
