SPECS
- neck type

  Atlas-55pc Panga Panga/Purpleheart neck w/KTS™ TITANIUM rods
- top/back/body

  Flamed Maple/Ash topAfrican Mahogany body
- fretboard

  Flamed Maple fretboardAbalone oval inlay
- fret

  Medium fretsPremium fret edge treatment
- number of frets

  24
- bridge

  MR5S bridge
- string space

  16.5mm
- neck pickup

  Nordstrand™ Big Single wood covered neck pickupPassive
- bridge pickup

  Nordstrand™ Big Single wood covered bridge pickupPassive
- equalizer

  Ibanez Custom Electronics 3-band EQ w/EQ bypass switch (passive tone control on treble pot), 3-way Mid frequency switch
- factory tuning

  1G,2D,3A,4E,5B
- strings

  D'Addario® EXL165 + .130
- string gauge

  .045/.065/.085/.105/.130
- nut

  Graph Tech® BLACK TUSQ XL® nut
- hardware color

  Black
NECK DIMENSIONS
- - Scale :

    864mm/34"
  - a : Width

    45mm at NUT
  - b : Width

    68mm at 24F
  - c : Thickness

    19.5mm at 1F
  - d : Thickness

    21.5mm at 12F
  - Radius :

    305mmR

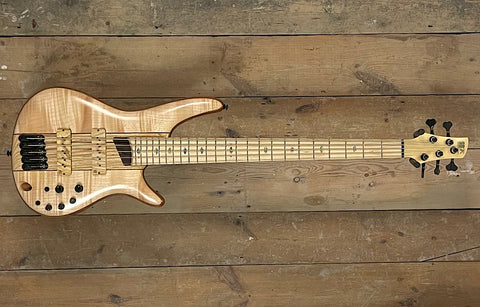

Ibanez SR5FMDX2
