Level

Sets the volume of the overdriven signal.

Drive

Sets the amount of saturation in the overdriven signal.

Blend

Mixes the clean input signal with the overdriven signal. The clean signal remains at unity gain while the volume of the overdriven signal is set by the Level knob, allowing for fine control of the blend ratio.

Era

Interacts with the Drive knob to shape the character of the pedal. Dial it down to get the warm midrange tones of the 70s or crank it up to get the punchy metallic tones of 80s and 90s rock.

Bass

+-12dB @ 100Hz

Mid

+-12dB @ 1kHz

Treble

+-12dB @ 5kHz

Parallel Output

A passthrough for your input signal, useful for parallel processing.

Direct Output

A balanced version of the ¼” output, useful for running into PA’s or studio mixing consoles.

Dimensions

12×10.7 cm (4.72×4.21 in)

Warning

The Vintage Deluxe has a current draw of 30mA. Only use a regulated 9V DC adapter with a center-negative plug. Due to ecological reasons it does not accept batteries. Unregulated power supplies and/or higher voltages may result in suboptimal noise performance and even damage your unit, voiding the warranty.

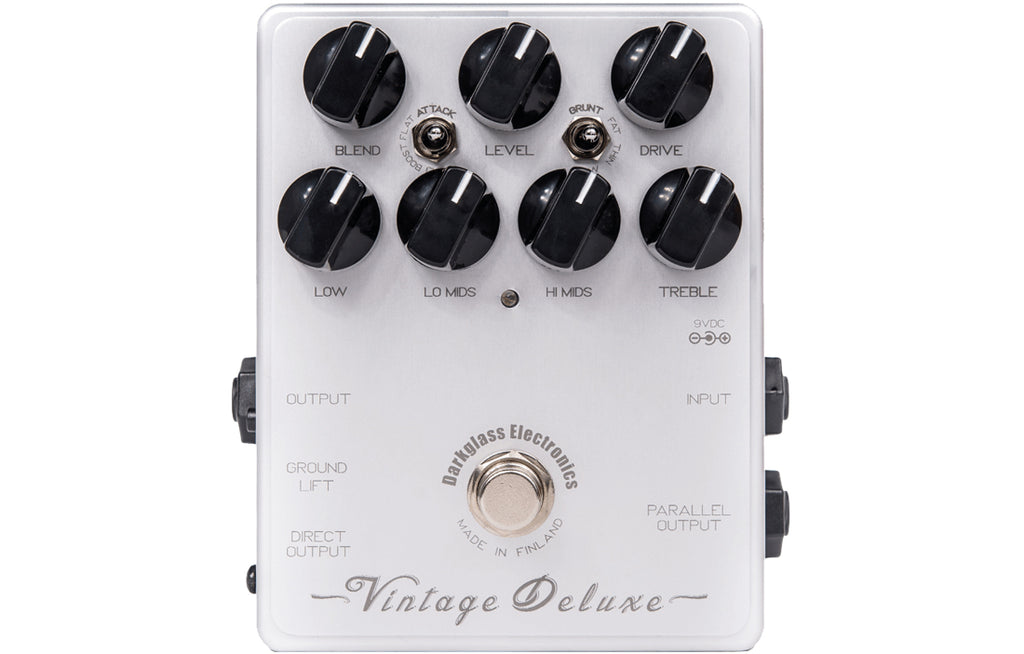

Darkglass Electronics Vintage Deluxe
