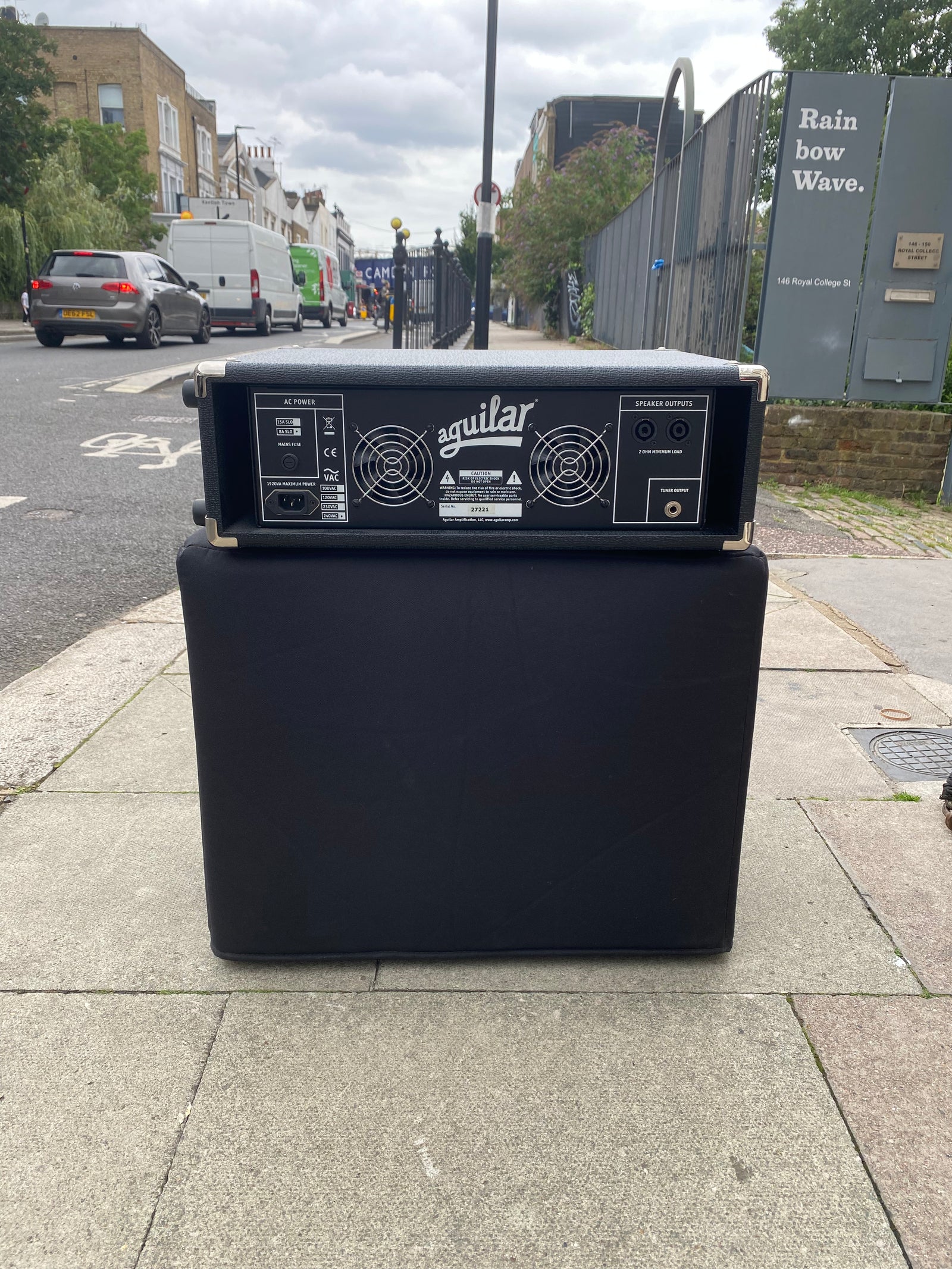

Aguilar DB751

£2,408.00

Quantity

Product Details

Specs:

Self-Diagnostic Protection Circuit and Thermal Overload Protection Circuit (both with LED indicators)

Power Output: 975 watts @ 2 ohms, 750 watts @ 4 ohms, 400 watts @ 8 ohms

Preamp Section: Three 12AX7’s

Power Section: 12 complimentary lateral MOSFETs

Transformer: Custom Aguilar toroidal power transformer

EQ Section: passive tone stack with active midrange element, bass: +12 / -12 @ 40Hz; midrange: +12 / -12 @ 750Hz; treb: +12 / -7 @ 4kHz

Deep Switch: Adds 5 dB of broadband boost at 30 Hz

Bright Switch: Adds 5 dB of broadband boost at 5-7 kHz

Effects Loop: Send is push/pull for line or instrument level; Return is push/pull for parallel or series operation

Inputs: One 1/4" input jack with an active/passive switch

Outputs: Two Neutrik Speakon speaker outputs, Jensen XLR balanced output (with pre/post EQ and ground lift switch) and Tuner out.

Cooling: High quality whisper fans with thermal speed control

Dimensions: 17" W x 14" D x 5.25" H

Rack Size: Three Spaces, Includes detachable rack ears

Weight: 42 lbs

Warranty: Ten Year Limited

Optional: Optional mute activation footswitch available

Accessories: Tolex Head cases in DB series colors, Rack bag
